Roof console
I fitted a roof console with the generous help of Jochen, a fellow LR-nut. He did an amazing job and I think, apart from being really handy, the console also looks the part!
Fitting a roof console (click on pictures to enlarge)
|

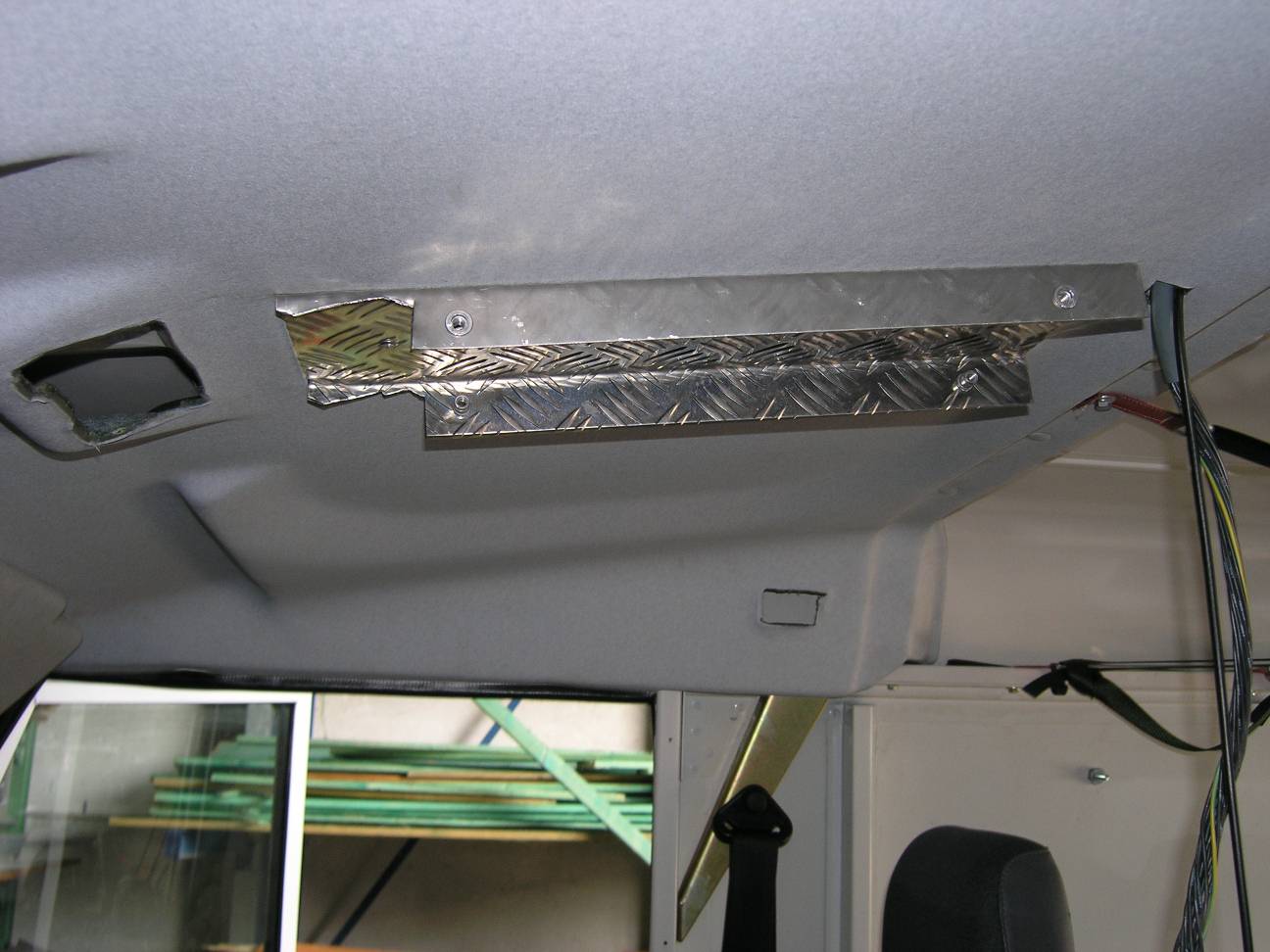

The base was attached to the roof with rivets. The sheet metal had been folded with a bender. |
|
|

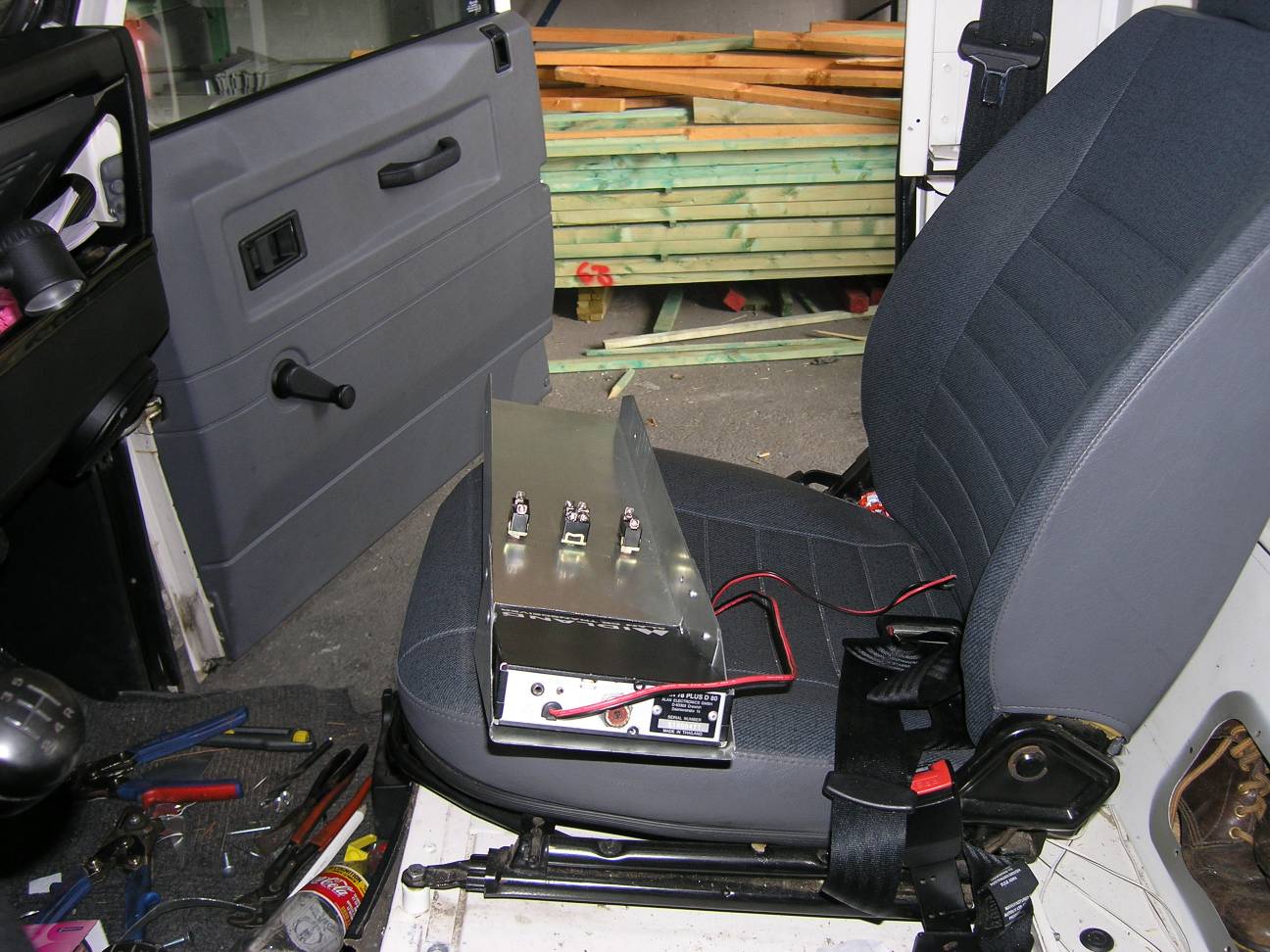

That's the outer fitting. Also folded with same bender. Holes drilled for the switches (lights front and rear) and the radio. |
|
|

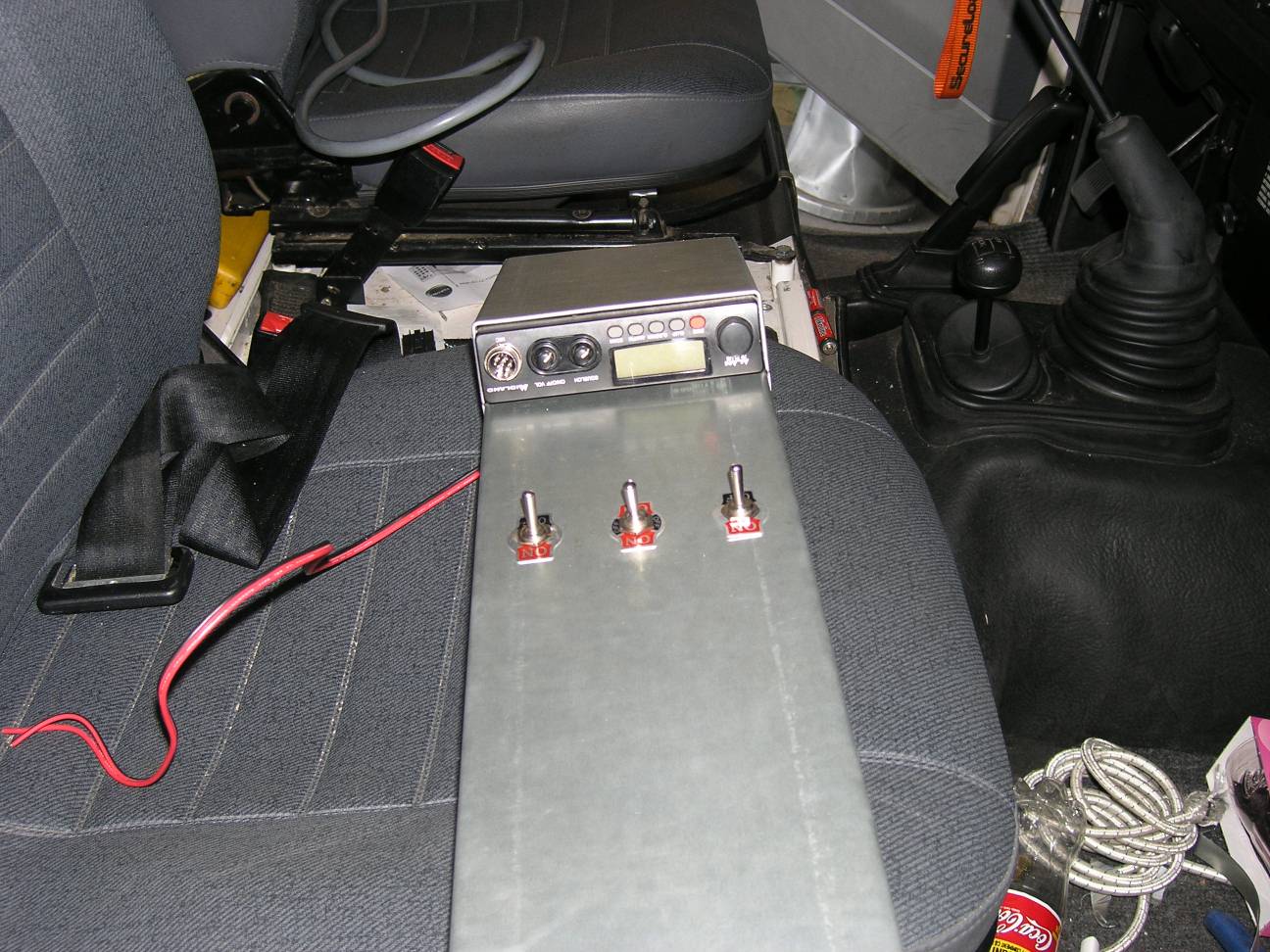

The outer side of the console's face. |
|
|

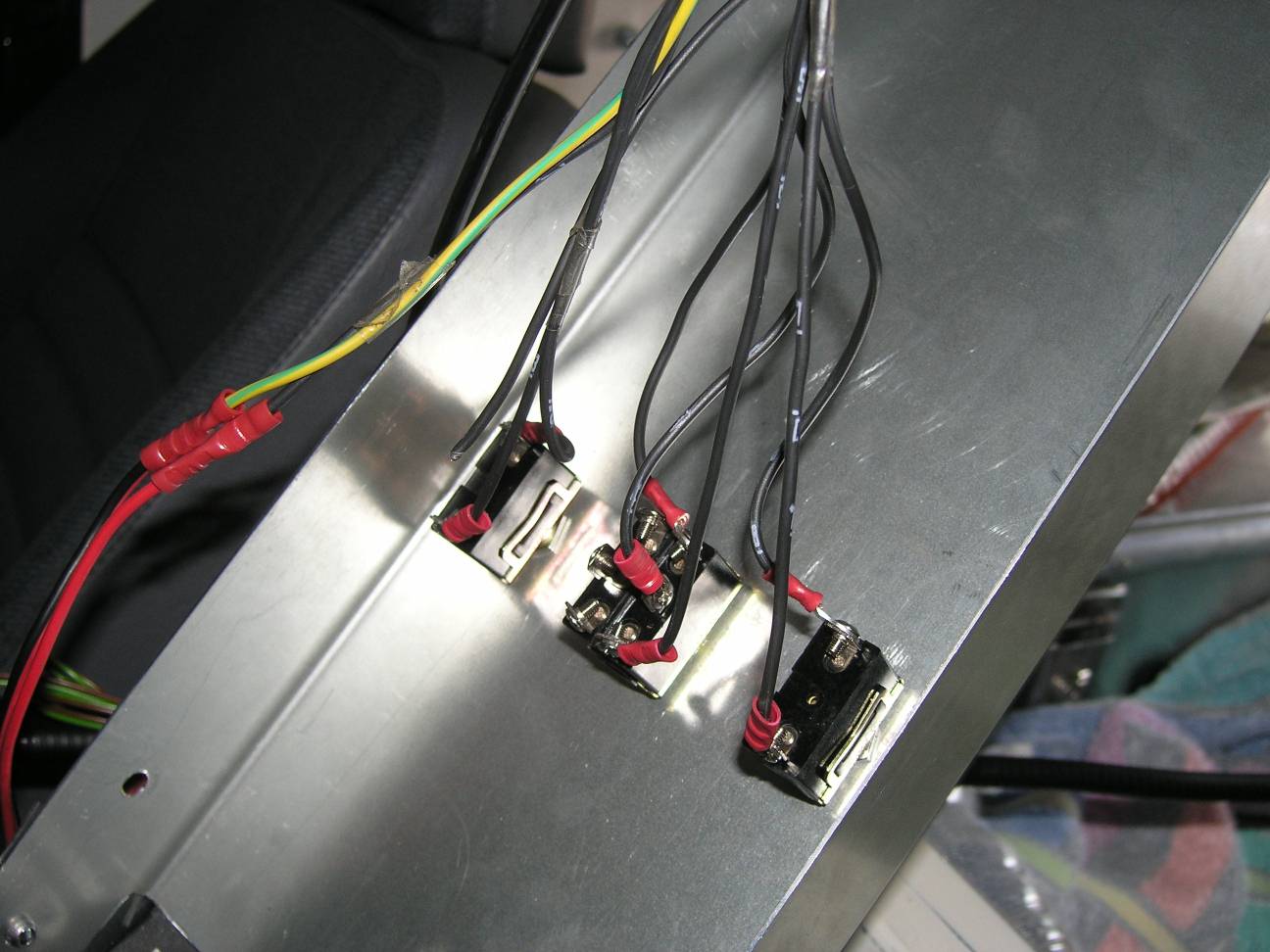

The wiring for the switches. |
|
|

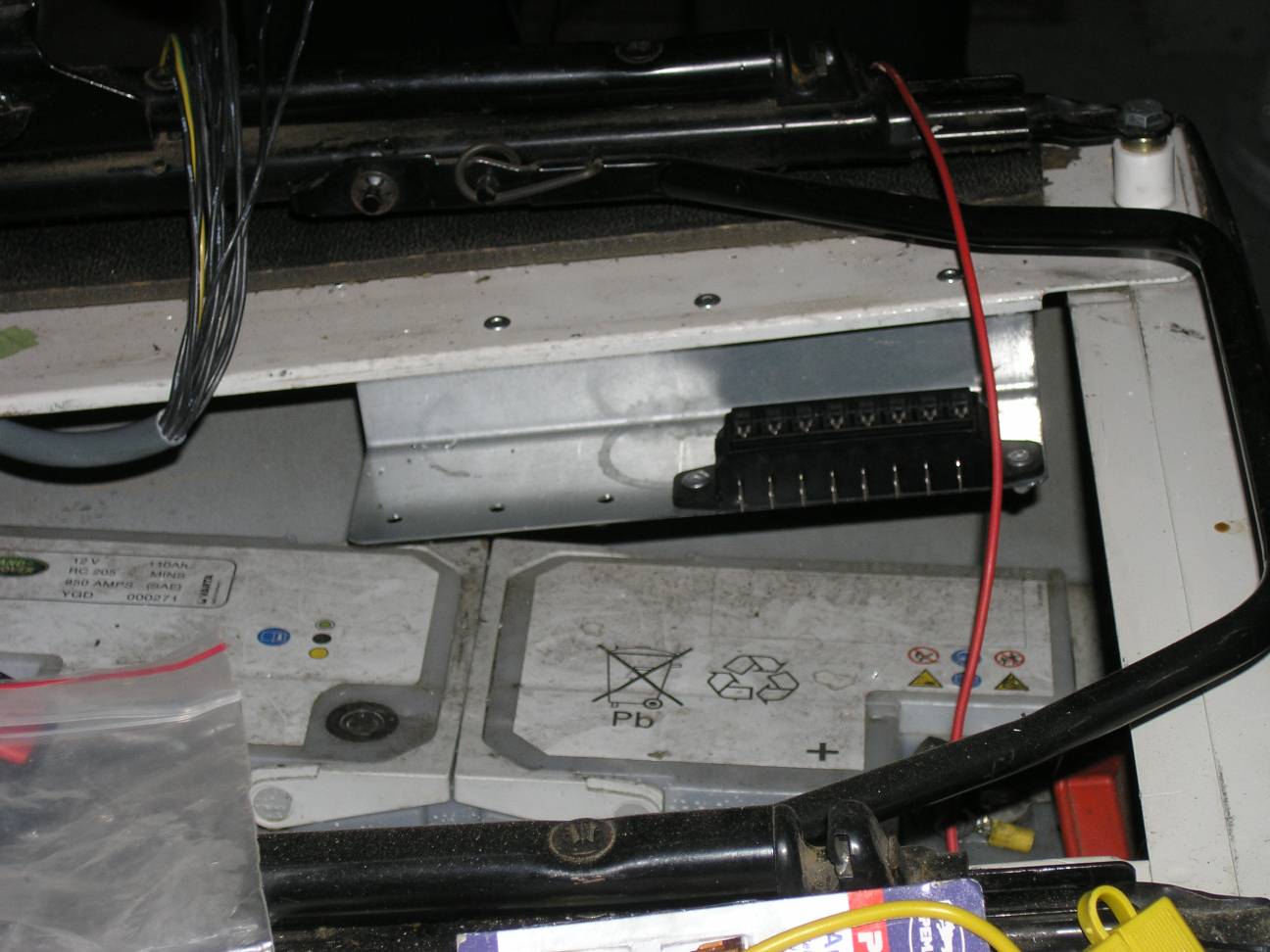

Fuse and connector box in under-seat battery tray. |
|
|

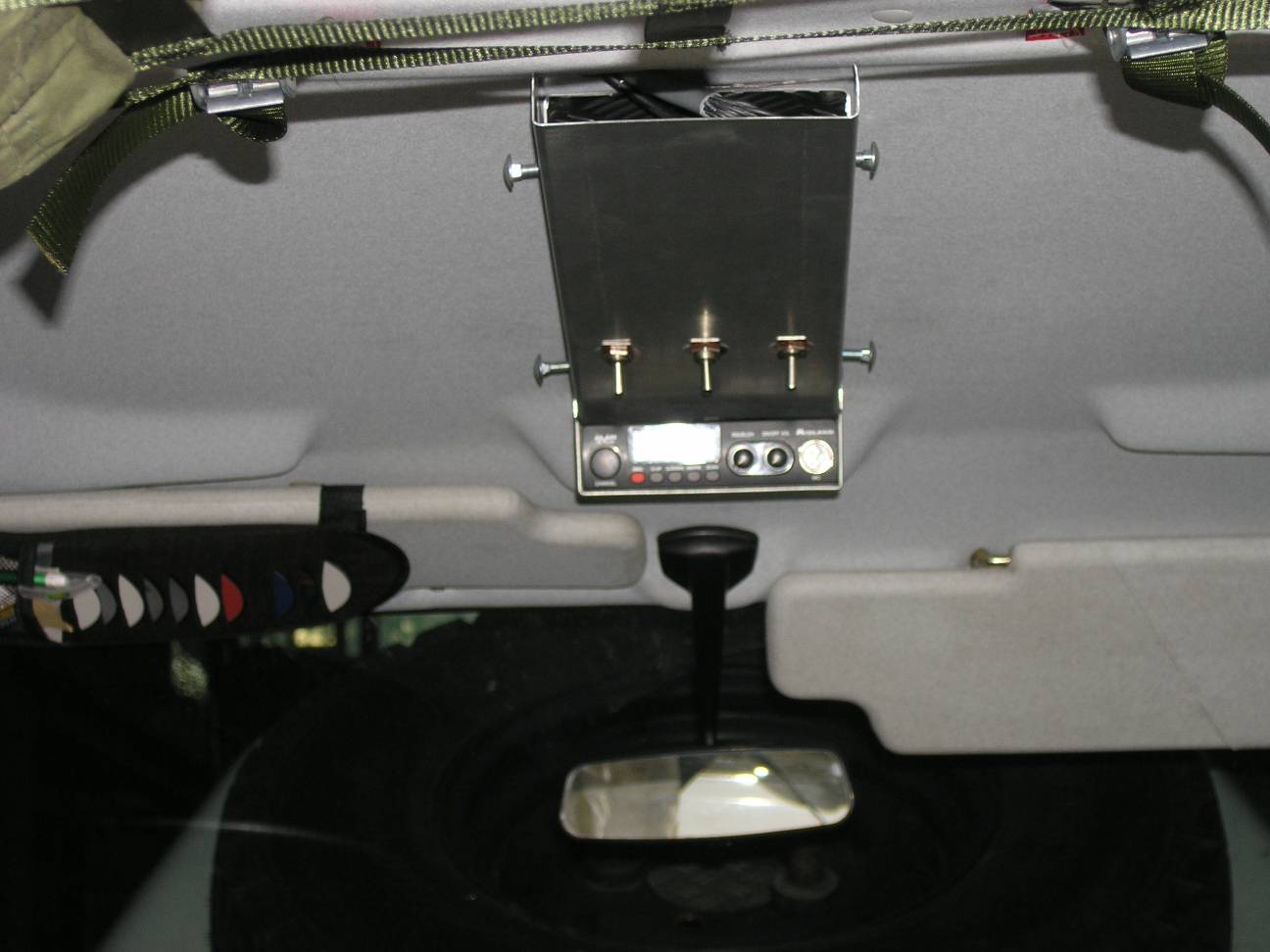

The fitted console. Shows the perspective well. |
|
|

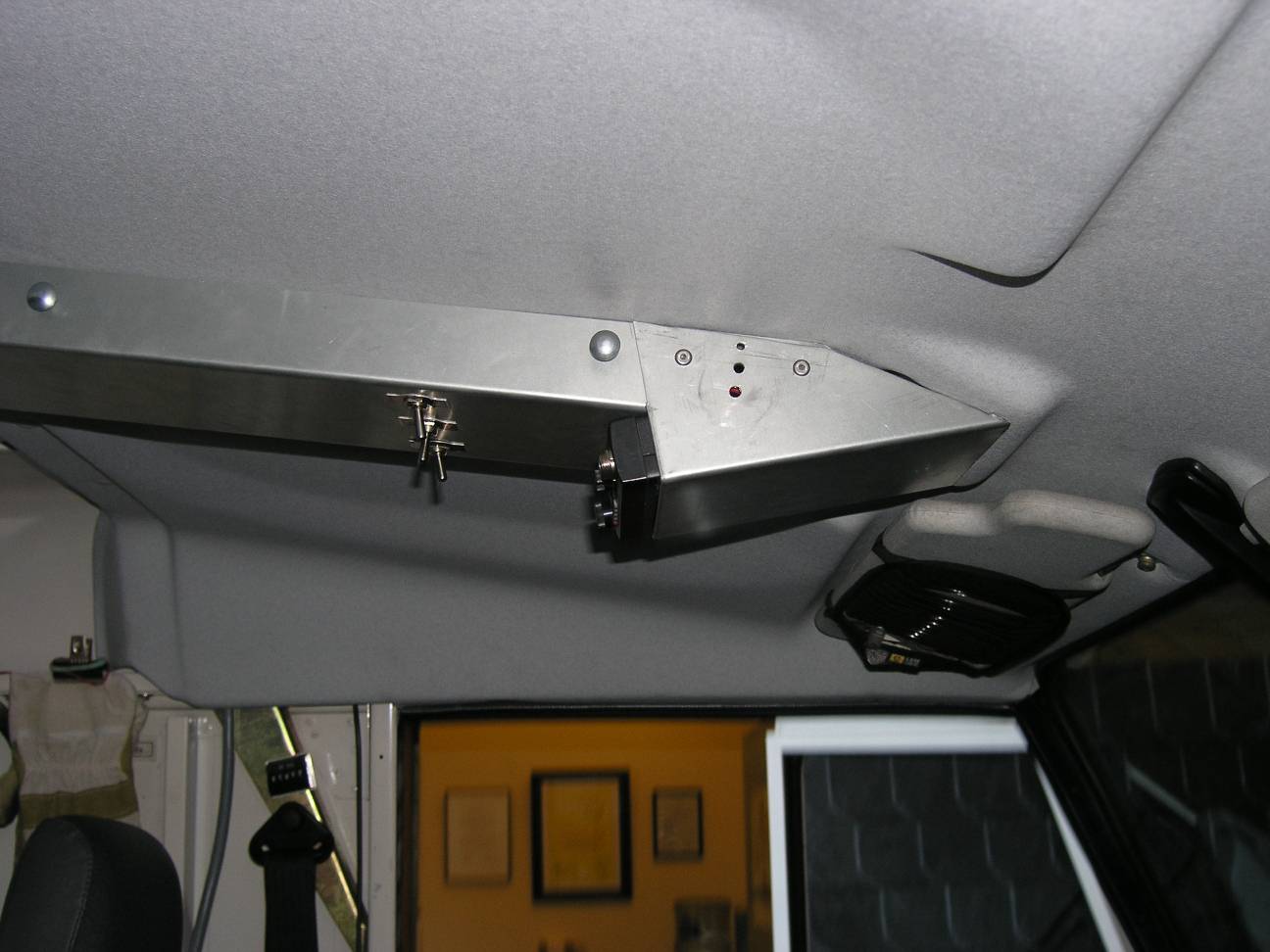

Other perspective. |
|
|

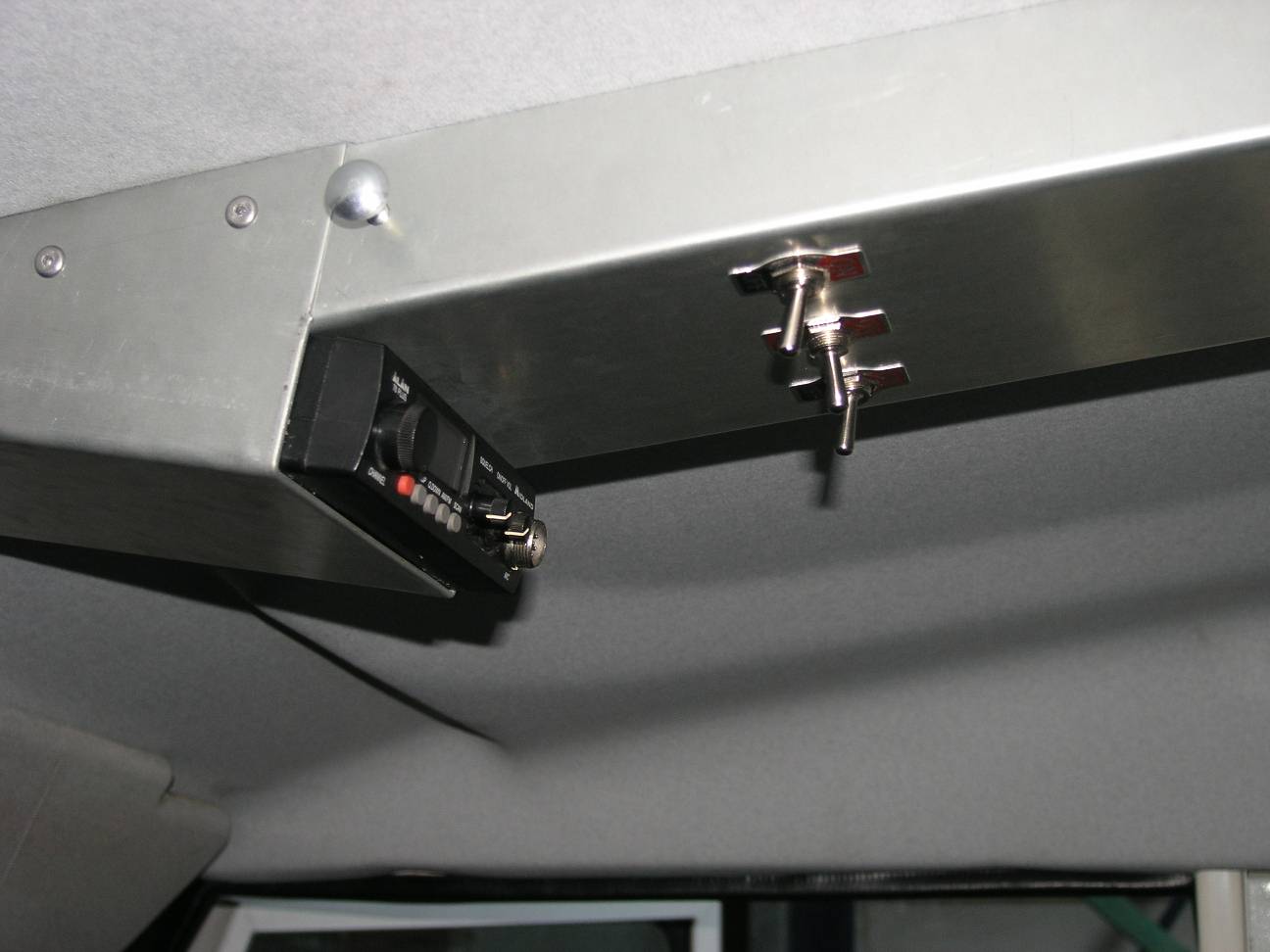

From the side. |
|
A job well done :) Thanks Jochen! |
